WL-AC507-A5083-03B0X

Technical parameters:

1.Rated Current: 5.0A AMP

2.Contact Resistance: 20 mΩ Max

3.WithstandVoltage: 250AC/DC

4.Insulation Resistance: 1000 MΩ Min

5.Working Temperature:-55C~ +105°C

6.Contact Material: Phosphor Bronze

7.Contact Plating: Gold

8.Material:PBT Black UL94V-0

9.Max. Processing Temp: 245±5°C For 30-60 Seconds;245±5°C For 10 Seconds

Product Description:

1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

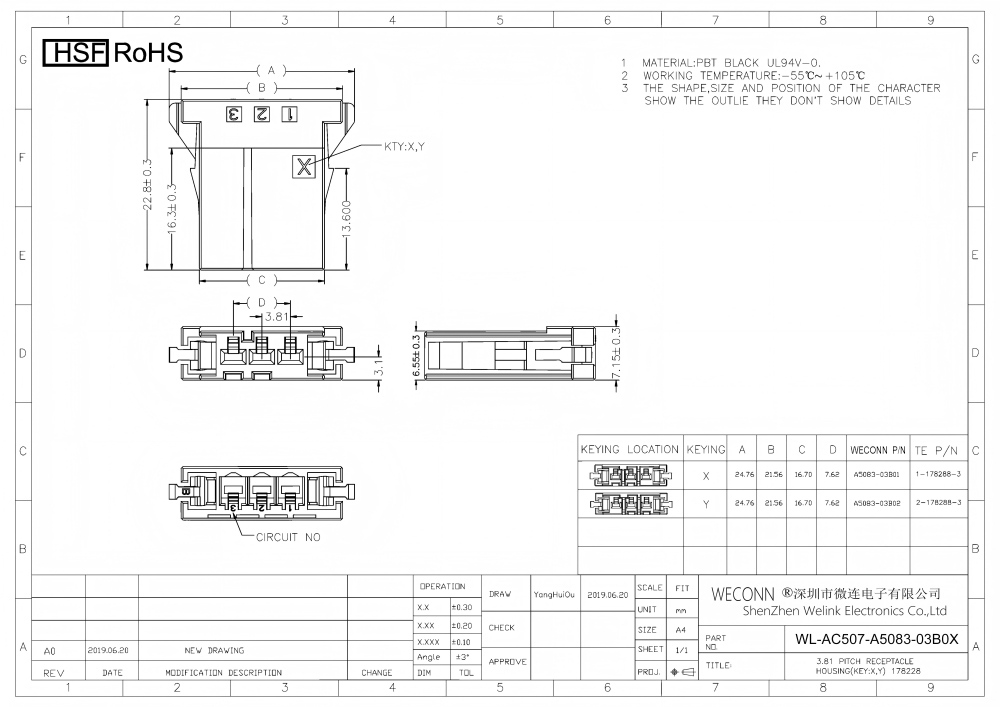

Drawing:
