WL-WR-1*NPX-KL0

Technical Parameters:

1.Voltage rating:250V AC/DC

2.Current rating:3A AC/DC

3.Withstanding voltage:800V AC/minute

4.Temperature range:-25°C +85°C

5.Insulation resistance:≥1000MΩ

6.Contact resistance:20M Max

7.After environmental testing:≤20MΩ

8.Materminal:SHEEL(PBT);PIN(C2680 Tin);

Product Description:

1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;

2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection

3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

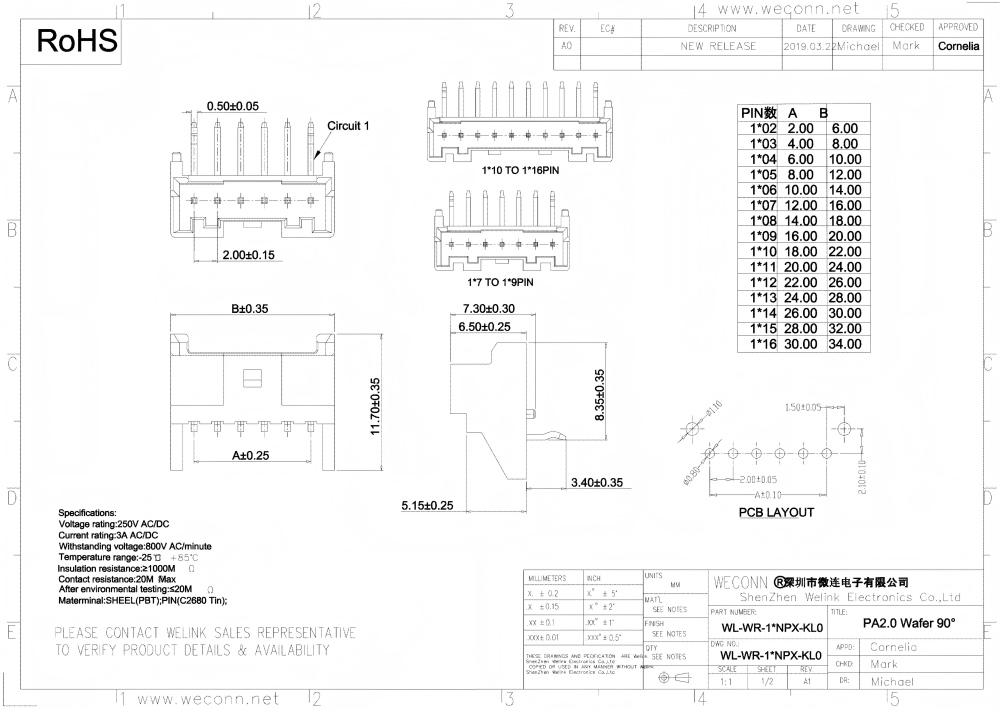

Drawing:
