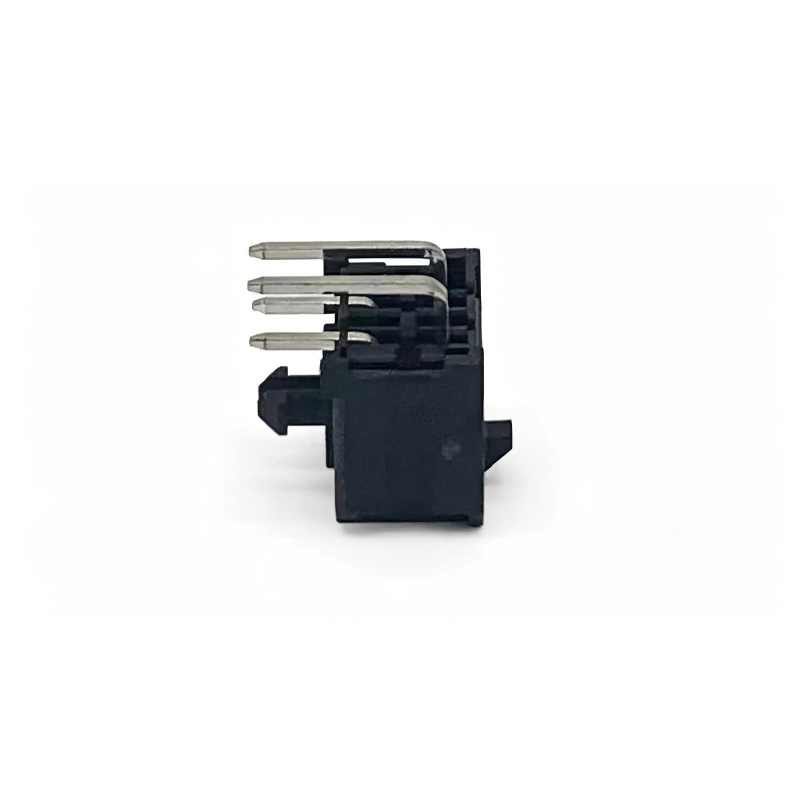

WL-WR-2*NPB-2

Technical parameters:

1.Voltage Rating: 250V AC, DC

2.Current Rating: 5A, AC, DC

3.Withstanding Voltage: 1500V AC/Minute

4.Insulation Resistance:1000MΩ min

5.Temperature Range: -25° C~+85° C

6.Contact Resistance: 10MΩ max.

Product Description:

1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;

2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection

3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

Drawing:
