WL-WR-1*NPX-B

Technical parameters:

1.Voltage Rating:250V AC/DC;

2.Current Rating:3A AC/DC;

3.Withstanding Voltage:1500V AC/minute

4.Insulatin Resistance:1000MΩ Min

5.Temperature Range:-25°C~+85°C

6.Contact Resistance:20MΩ Max

7.Poles:2-20P

8.Housing Material:PA66 UL94-V0

9.PIN Material:Brass

Product Description:

1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;

2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection

3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

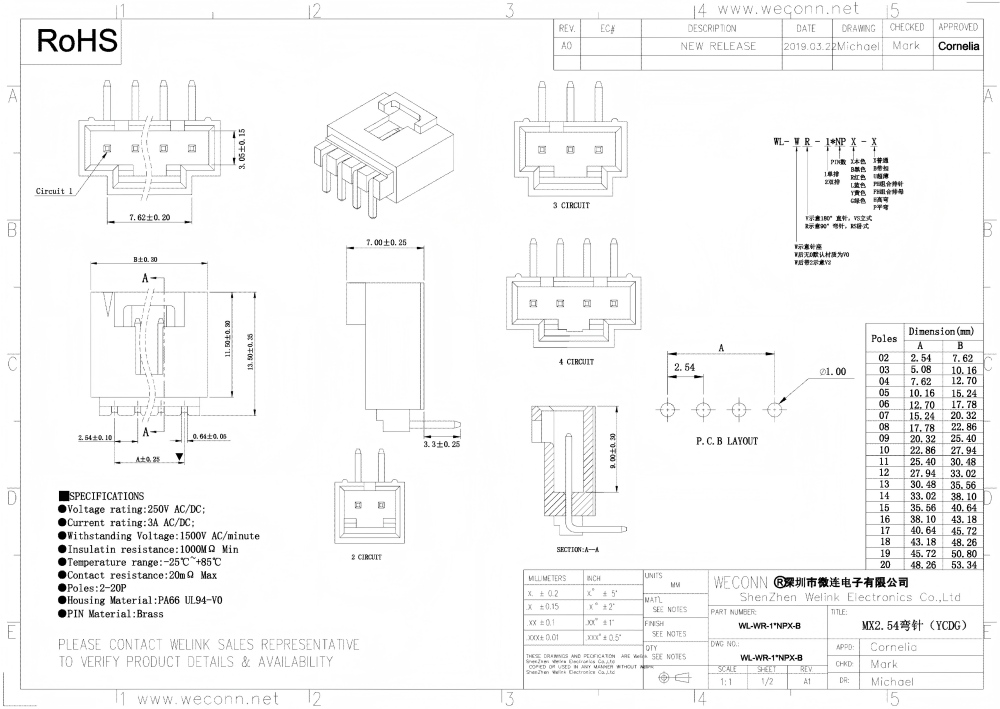

Drawing:
