WL-PH0811-12XX11XXXNXXRXXXX0X

Technical Parameters:

1.Rated Current:3.0AMP

2.Contact Resistance:20mΩ Max

3.Withstand Voltage:1000V AC/DC

4.Insulation Resistance:1000MΩ Min

5.Operation Temperature:-40c to +105c

6.Contact Material:Brass

7.Contact Plating:Au Over Ni

8.Insulator Material:Polyester(UL94V-0)

9.Resistance To Soldering Heat:

245°C±5°C，10s(PBT insulator)

260°C±5°C，10s(PA6T&PA9T&LCP insulator)

Product Description:

1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

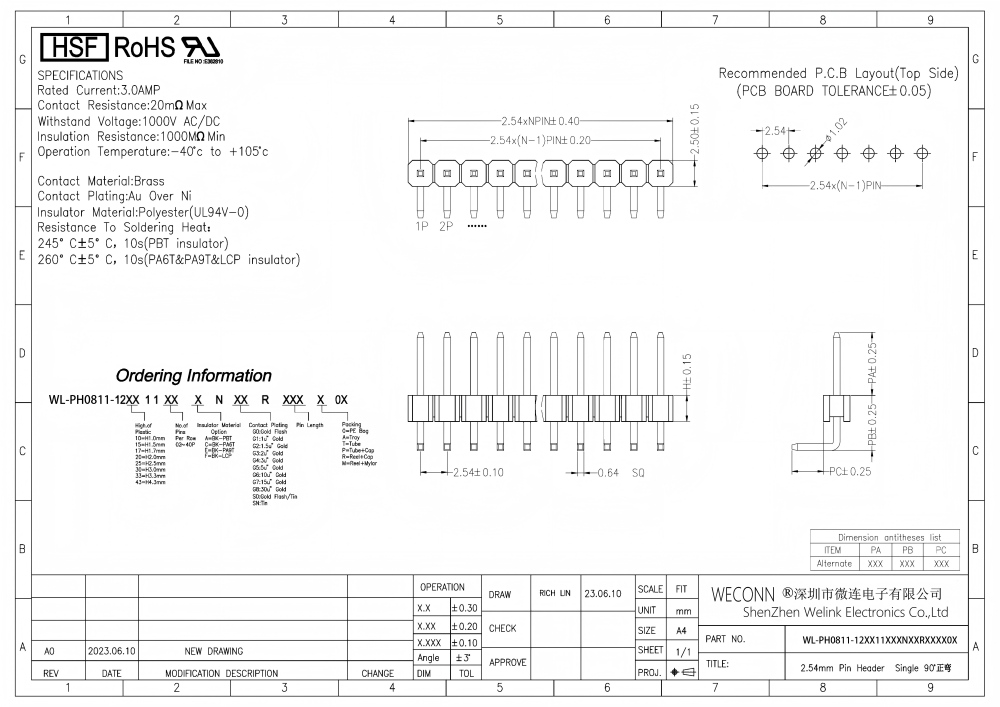

Drawing:
